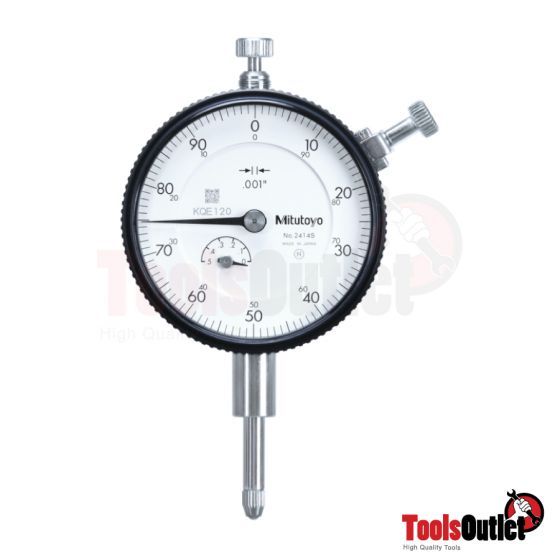

Dial Gauge ไดอัลเกจ Mitutoyo รุ่น 2414S
This is a standard, inch dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
SPECIFICATIONS
Inch
| Order No. | Graduation | Range (range/rev) |
Accuracy* | Repeat-ability | Dial reading |
Measuring force |
|
| w / lug | First 1 Rev / 2.5 Rev / 10 Rev | Retrace | |||||
| 2414S | 0.001 in | 0.5 in (0.1 in) | ±0.001 in / ±0.001 in / ±0.001 in | 0.0002 in | ±0.0002 in | ±0-100 | 1.8 N or less |
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
